Carbon crystal plate

1. Product Overview
House carbon crystal board is a new type of environmentally friendly building material. It adopts carbon crystal heating technology and integrates heating, decoration and energy conservation. It is suitable for various scenarios such as floors, walls and ceilings. Its core heating layer is composed of carbon crystal molecular materials. When electrified, it generates far-infrared radiation heat, achieving efficient and energy-saving heating. At the same time, it has the advantages of safety, durability, and easy installation.

2. Product structure
The carbon crystal plate adopts a multi-layer composite structure to ensure efficient heating and safety and stability.

Material and function of the structural layer
The surface decorative layer can be selected from ceramic tiles, wood grain, stone grain, solid colors, etc., to meet the needs of different decoration styles (such as imitation marble, solid wood texture).
The protective layer is coated with a high-hardness wear-resistant coating (Mohs hardness ≥4), which is scratch-resistant and impact-resistant.
The carbon crystal molecular heating film in the heating layer heats up uniformly, with an electrothermal conversion rate of ≥98%.
Insulating layer fireproof and flame-retardant material (conforming to GB8624-2012 B1 grade), high-temperature resistant and leak-proof.
The base layer is made of high-strength base materials (such as aluminum-magnesium alloy, high-density board), ensuring it is flat, stable and does not deform.
3. Technical parameters
Project parameters
Rated voltage: 220V/50Hz (customizable to 110V
Power density: 150-300W/㎡ (adjustable)
Heating temperature: Surface temperature 30-70℃ (with intelligent temperature control)
Thermal efficiency ≥98%

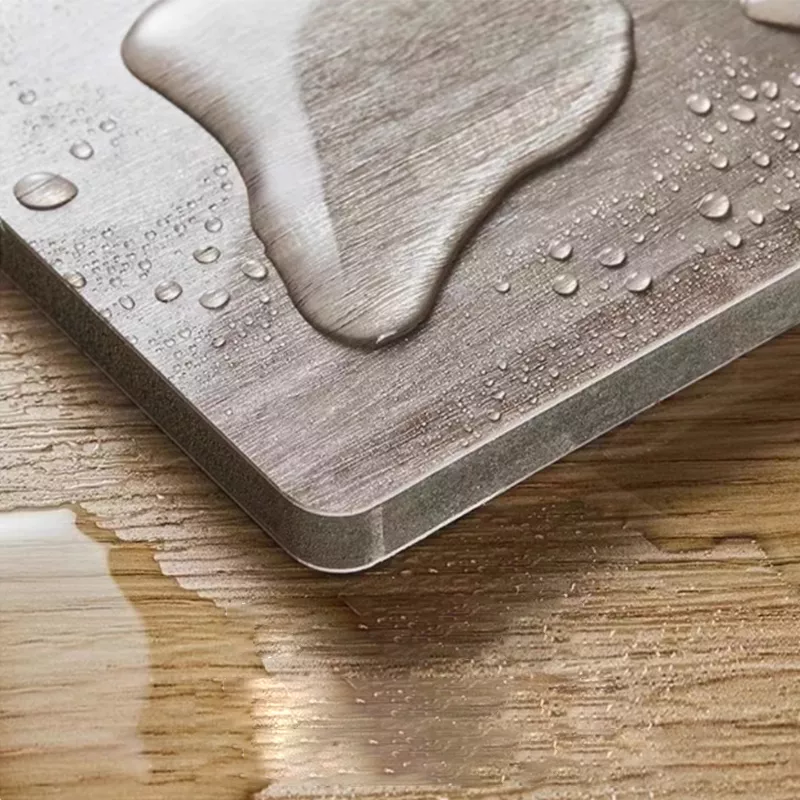

Waterproof rating IPX4 (splash-proof, suitable for bathrooms and kitchens)
Far-infrared wavelength: 8-15μm (matching the human infrared band, providing comfortable physiotherapy)
Service life ≥ 100,000 hours (approximately 30 years)
Thickness: 10-25mm (Ultra-thin design, space-saving)
4. Core Functions
✅ High efficiency heating: Warming up quickly in 3-5 minutes, radiant heat directly warms the human body, more comfortable than air conditioning heating.
✅ Smart Temperature control: Supports mobile APP, voice control (such as Tmall Genie, Xiaoai), can adjust temperature by time and area.
✅ HEALTHY and ENVIRONMENTALLY FRIENDLY: no electromagnetic radiation, no noise, not dry, far-infrared rays promote blood circulation.
✅ SAFE and durable: fireproof, leak-proof, moisture-proof and corrosion-resistant, suitable for long periods of use.
✅ One-piece decoration: A variety of patterns to choose from (wood grain, stone grain, solid color) and blend perfectly with the decoration style.

5. Applicable scenarios
🏠 Home: Floor heating in the living room, background wall in the bedroom, anti-fog mirror in the bathroom, heating on the balcony.
🏨 Commercial places: hotels, offices, kindergartens, maternity centers and other places that require comfortable heating.
❄️ High Cold regions: suitable for northern winter auxiliary heating, solving the problem of slow warming of traditional heating.

6. Installation method
📌 Wall mounting: can be pasted directly or fixed with keel, used with thermostat.
📌 Floor mounting: Laid under a floor or tile, compatible with the floor heating system.
📌 Ceiling installation: suitable for bathrooms, kitchens and other Spaces, saving floor area.
